Record building workflow

Last updated: February 23, 2020

This page describes the process used to build records based on the data saved by instruments in the Electron Microscopy Nexus facility using NexusLIMS. At the bottom is an activity diagram that illustrates how the different modules work together to generate records from the centralized file storage and the NexusLIMS session database. Throughout this page, links are made to the API Documentation as appropriate for further detail about the methods and classes used during record generation.

General Approach

Because the instruments cannot communicate directly with the NexusLIMS back-end, the system utilizes a polling approach to detect when a new record should be built. The process described on this page happens periodically (using a system scheduling tool such as systemd or cron). The record builder is begun by running python -m nexusLIMS.builder.record_builder, which will run the process_new_records() function. This function initiates one iteration of the record builder, which will query the NexusLIMS database for any sessions that are waiting to have their record built and then proceed to build them and upload them to the NexusLIMS CDCS instance. As part of this process (and explained in detail below), the centralized file system is searched for files matching the session logs in the database, which then have their metadata extracted and are parsed into Acquisition Activities. These activities are written to the .xml record, which is validated against the Nexus Microscopy Schema, and finally uploaded to the NexusLIMS CDCS instance if everything goes according to plan. If not, an error is logged to the database for that session and the operators of NexusLIMS are notified so the issue can be corrected.

A note on authentication...

Since many of the resources accessed by the NexusLIMS back-end require authentication (such as the SharePoint Calendar and the CDCS instance), it is necessary to provide suitable credentials, or no information will be able to be fetched. This is done by specifying two environment variables in the context the code is run: nexusLIMS_user and nexusLIMS_pass. The values provided in these variables will be used for authentication to all network resources that require it. If running the code inside of a pipenv, the easiest way to do this is by editing the .env.example file in the root of the NexusLIMS repository and renaming it to .env (make sure not to push this file to any remote source, since it has a password in it!).

Finding New Sessions

The session finding is initiated by process_new_records(), which immediately calls build_new_session_records(), which in turn uses get_sessions_to_build() to query the NexusLIMS database for sessions awaiting processing (the database location can be referenced within the code using the configuration variable nexusLIMS_db_path. This method interrogates the database for session logs with a status of TO_BE_BUILT using the SQL query:

SELECT (session_identifier, instrument, timestamp, event_type, user)
FROM session_log WHERE record_status == 'TO_BE_BUILT';

The results of this query are stored as SessionLog objects, which are then combined into Session objects by finding START and END logs with the same session_identifier value. Each Session has five attributes that are used when building a record:

session_identifierstr

The UUIDv4 identifier for an individual session on an instrument

instrumentInstrument

An object representing the instrument associated with this session

dt_fromdatetime

A datetime object representing the start of this session

dt_todatetime

A datetime object representing the end of this session

userstr

The username associated with this session (may not be trustworthy, since not every instrument requires the user to login)

The get_sessions_to_build() method returns a list of these Session objects to the record builder, which are processed one at a time.

Building a Single Record

With the list of Session instances returned by get_sessions_to_build(), the code then loops through each Session, executing a number of steps at each iteration (which are expanded upon below — the link after each number will bring you directly to the details for that step).

Overview

1. (link) Execute build_record() for the Instrument and time range specified by the Session

2. (link) Fetch any associated calendar information for this Session using get_events()

3. (link) Identify files that NexusLIMS knows how to parse within the time range using find_files_by_mtime(); if no files are found, mark the session as NO_FILES_FOUND in the database using update_session_status() and continue with step 1 for the next Session in the list.

4. (link) Separate the files into discrete activities (represented by AcquisitionActivity objects) by inferring logical breaks in the file's acquisition times using cluster_filelist_mtimes().

5. (link) For each file, add it to the appropriate activity using add_file(), which in turn uses parse_metadata() to extract known metadata and thumbnail_generator to generate a web-accessible preview image of the dataset. These files are saved within the directory contained in the nexusLIMS_path environment variable.

6. (link) Once all the individual files have been processed, their metadata is inspected and any values that are common to all files are assigned as AcquisitionActivity Setup Parameters, while unique values are left associated with the individual files.

7. (link) After all activities are processed and exported to XML, the records are validated against the schema using validate_record().

8. (link) Any records created are uploaded to the NexusLIMS CDCS instance using upload_record_files() and the NexusLIMS database is updated as needed.

1. Initiating the Build

Prior to calling build_record() for a given Session, insert_record_generation_event() is called for the Session to insert a log into the database that a record building attempt was made. This is done to fully document all actions taken by NexusLIMS.

After this log is inserted into the database, build_record() is called using the Instrument and timestamps associated with the given Session. The code begins the record by writing basic XML header information before querying the reservation system for additional information about the experiment. (go to top)

2. Querying the SharePoint Calendar

Since users must make reservations on the SharePoint calendar, this is an important source of metadata for the experimental records created by NexusLIMS. Information from these calendar "events" is included throughout the record, although it primarily informs the information contained in the <summary> element, including information such as who made the reservation, what the experiment's motivation was, what sample was examined, etc.

To obtain this information, the get_events() function from the sharepoint_calendar harvester module is used. This function authenticates to and queries the SharePoint API, and receives an XML response representing any reservations found that match the timespan of the Session. This XML is then translated using the XSLT file (path specified by XSLT_PATH) into a format that is compatible with the Nexus Microscopy Schema. This result is added to the XML representation of the current record.

If no matching events are found, some basic details are added to the <summary> section of the record using the information that can be accessed, such as the instrument the Experiment was performed on, as well as the date and time. (go to top)

3. Identifying Files to Include

The majority of the information included in an Experiment record is extracted from the files identified as part of a given session on one of the Electron Microscopy Nexus Facility microscopes. To do this, a few different sources of information are combined. As described before, a Session will provide an identifier, the timespan of interest, as well as the Instrument that was used for the Session. The Instrument objects attached to session logs are read from the instruments table of the NexusLIMS database, and contain known important information about the physical instrument, such as the persistent identifier for the microscope, its location, the URL where its reservations can be found, where it saves its files (relative to the directory specified in the mmfnexus_path environment variable), etc. Sourcing this information from the master database allows for one central location for authoritative data. Thus, if something changes about the instruments' configuration, the data needs to be updated in one location only. The following is an example of the information extracted from the database and available to the NexusLIMS back-end software for a given instrument (in this case the FEI Titan TEM in Building 223):

Nexus Instrument: FEI-Titan-TEM-635816
API url:          https://mmlshare.nist.gov/Div/msed/MSED-MMF/_vti_bin/ListData.svc/FEITitanTEMEvents
Calendar name:    FEI Titan TEM
Calendar url:     https://mmlshare.nist.gov/Div/msed/MSED-MMF/Lists/FEI%20Titan%20Events/calendar.aspx
Schema name:      FEI Titan TEM
Location:         223/B115
Property tag:     635816
Filestore path:   ./Titan
Computer IP:      129.6.173.37
Computer name:    TITAN52331880
Computer mount:   M:/

Using the Filestore path information, NexusLIMS searches for files modified within the Instrument's path during the specified timespan. This is first tried using the gnu_find_files_by_mtime(), which attempts to use the Unix find command by spawning a sub-process. This only works on Linux, and may fail, so a slower pure-Python implementation (implemented in find_files_by_mtime()) is used as a fallback if so. All files within the Instrument's root-level folder are searched and only files with modificaiton times with the timespan of interest are returned. Currently, this process takes on the order of tens of seconds for typical records (depending on how many files are in the instrument's folder) when using the gnu_find_files_by_mtime(). Basic testing has revealed the pure Python implementation of find_files_by_mtime() to be approximately 3 times slower.

If no files matching this session's timespan are found (as could be the case if a user accidentally started the logger application or did not generate any data), the update_session_status() method is used to mark the session's record status as 'NO_FILES_FOUND' in the database, and the back-end proceeds with step 1 for the next Session to be processed. (go to top)

4. Separating Acquisition Activities

Once the list of files that should be associated with this record is obtained, the next step is to separate those files into logical groupings to try and approximate conceptual boundaries that occur during an experiment. In the NexusLIMS schema, these groups are called AcquisitionActivities, which are represented by AcquisitionActivity objects by the NexusLIMS back-end.

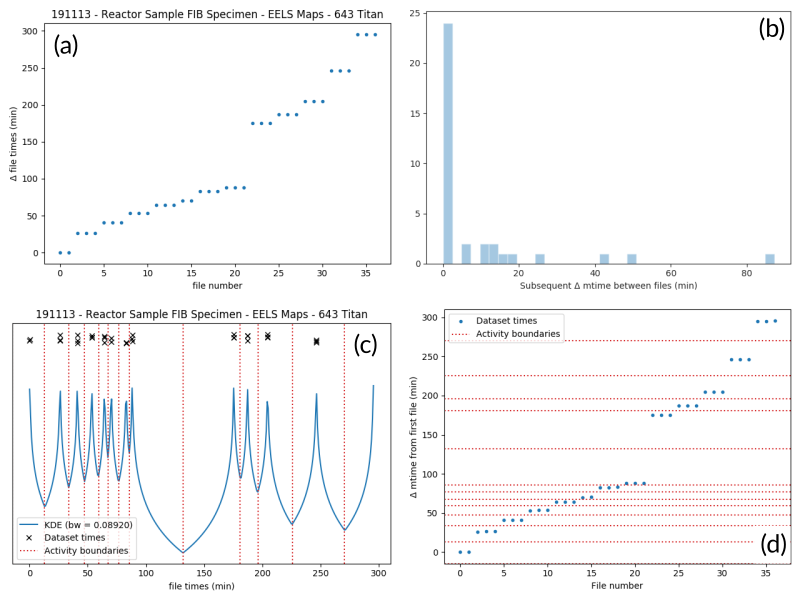

To separate the list of files into groups, a statistical analysis of the file creation times is performed, as illustrated in Fig. 1 for an example experiment consisting of groups of EELS spectrum images. In (a), the difference in creation time (compared to the first file) for each file is plotted against the sequential file number. From this, it is clear that there are 13 individual groupings of files that belong together (the first two, then next three, three after that, and so on...). These groupings represent files that were collected near-simultaneously, and each group is a collection of files (EELS, HAADF signal, and overview image) from slightly different areas. In (b), a histogram of time differences between consecutive pairs of files, it is clear that the majority of files have a very short time difference, and the larger time differences represent the gaps between groups.

Fig. 1 An example of determining the AcquisitionActivity time boundaries for a group of files collected during an experiment. See the surrounding text for a full explanation of these plots.

Since the pattern of file times will vary (greatly) between experiments, a statistical approach is needed, as implemented in cluster_filelist_mtimes(). In this method, a Kernel Density Estimate (KDE) of the file creation times is generated. The KDE will be peaked around times where many files are created in a short succession, and minimized at long gaps between acquisition times. In practice, there is an important parameter (the KDE bandwidth) that must be provided when generating the density estimate, and a grid search cross-validation approach is used to find the optimal value for each record's files (see the documentation of cluster_filelist_mtimes() for further details). Once the KDE is generated, the local minima are detected, and taken as the boundaries between groups of files, as illustrated in Fig. 1 (c) (the KDE data is scaled for clarity).

With those boundaries overlaid over the original file time plot as in Fig. 1 (d), it can be seen that the method clearly delineates between the groups of files, and identifies 13 different groups, as a user performing the clustering manually would, as well. This approach has proven to be generalizable to many different sets of files and is robust across filetypes, as well. (go to top)

5. Parsing Individual Files' Metadata

Once the files have been assigned to specific AcquisitionActivity objects, the instrument- and filetype-specific metadata extractors take over. These are all accessed by the single parse_metadata() function, which is responsible for figuring out which specific extractor should be used for the provided file. The extractors are contained in the nexusLIMS.extractors subpackage. Each extractor returns a dict, containing all known metadata in its native (or close to) structure, that has a top-level key 'nx_meta' containing a dict of metadata that gets fed into the eventual XML record (note, this is not currently enforced by any sort of schema validation, but will hopefully be in the future). In general, the 'nx_meta' dict can be of arbitrary depth, although any nested structure is flattened into a dict of depth one with spaces separating nested keys, so it is important to avoid collisions. Apart from a few special keys, the key-value pairs from the 'nx_meta' dict are reproduced verbatim in the XML record as either Setup Parameters or Dataset Metadata, and will be displayed in the CDCS front-end alongside the appropriate <AcquisitionActivity> or <dataset>. Again, these values are not subject to any particular schema, although this would be good place for validation against an instrument- or methodology-specific ontology/schema, were one to exist.

Special metadata keys

A few keys within the 'nx_meta' dict are reserved for internal use (again, not validated by a schema), and are parsed in a special way if they exist. These include (at present): 'DatasetType', 'Data Type', 'Creation Time', and 'warnings'. 'DatasetType' is mapped to the @type attribute of <dataset> elements in the NexusLIMS schema, and has a controlled vocabulary (see the schema documentation for details). 'Data Type' is non-controlled, and should contain a human-readable value that describes the data (with spaces replaced by _ characters), such as 'TEM_Imaging', 'SEM_EDS', 'STEM_EELS', etc. These values will be parsed in the front-end to report each activity's Activity contents and provide an overview of what types of data were collected during that activity. 'Creation Time' should be an ISO format timestamp and is displayed in the dataset table in the front-end. Finally, 'warnings' should contain a list of metadata keys that will be marked as "unreliable". These allow the front-end to display a warning for values that are worth including, but are known to sometimes have an incorrect value (see parse_643_titan() for an example of this).

As much as possible, the metadata extractors make use of widely adopted third-party libraries for proprietary data access. For most data files, this means the HyperSpy library is used, since it provides readers for a wide variety of formats commonly generated by electron microscopes. Otherwise, if a new format is to be supported, it will require decoding the binary format and implementing the extractors/preview generator manually.

parse_metadata() will (by default) write a JSON representation of the metadata it extracts to a sub-directory within the directory contained in the nexusLIMS_path environment variable that matches where the original raw data file was found in the directory from the mmfnexus_path environment variable. A link to this file is included in the outputted XML record to provide users with an easy way to query the metadata for their files in a text-based format. Likewise, the parse_metadata() function also handles generating a PNG format preview image, which is saved in the same folder as the JSON file described above. The actual preview generation is currently implemented in sig_to_thumbnail() for files that have a HyperSpy reader implemented, and in down_sample_image() for simpler formats, such as the TIF images produced by certain SEMs.

The metadata dictionaries and path to the preview image are maintained at the AcquisitionActivity level for all the files contained within a given activity. (go to top)

6. Determining Setup Parameters

For each AcquisitionActivity, the record builder will identify metadata keys/values that are common across all the datasets contained in the activity after the individual files have been processed, and stores these values at the <AcquisitionActivity> level of the resulting XML record rather than at the <dataset> level. This allows for easier determination in the front-end of what metadata is unique to each file and also to see what metadata does not change during a given portion of an experiment.

The code to do this determination is implemented in store_setup_params(), which loops through the metadata of each file of the given AcquisitionActivity, testing to see if the values are identical in each file. If so, the metadata value is stored as an Activity Setup Parameter.

Once this process has completed, store_unique_metadata() compares the metadata for each file to that of the AcquisitionActivity, and stores only the values unique to that dataset (or at least not identical among all files in the AcquisitionActivity). (go to top)

7. Validating the Built Records

After the processing of each AcquisitionActivity is finished, it is added to the XML record by converting the Python object to an XML string representation using as_xml(). Once this has been done for all the activities identified in the earlier steps, the record is completed. It is returned (as a str) to the build_new_session_records() function, and is validated against the NexusLIMS schema using validate_record().

If the record does not validate, something has gone wrong and an error is logged. Correspondingly, the update_session_status() method is used to mark the session's record status as 'ERROR' in the database so the root cause of the problem can be investigated by the NexusLIMS operations team.

If the record does validate, it is written to a subdirectory of nexusLIMS_path (environment variable) for storage before it is uploaded to the CDCS instance.

Regardless, the back-end then proceeds with step 1 for the next Session to be processed, and repeats until all sessions have been analyzed. (go to top)

8. Uploading Completed Records and Updating Database

Once all the new sessions have been processed, if there were any XML records generated, they are uploaded using the upload_record_files() function of the nexusLIMS.cdcs module. This function takes a list of XML files to upload, and attempts to insert them in the NexusLIMS CDCS instance using the REST API provided by CDCS (documented here). The CDCS instance will validate the record again against the pre-loaded NexusLIMS schema. upload_record_files() then assigns the record to the Global Public Workspace so it is viewable without login. Note: this will be changed in future versions once single-sign-on is implemented, since records will be owned by the user that creates them.

At this point, the record generation process has completed. This entire logic is looped periodically as described at the top to continually parse new sessions, as they occur. (go to top)

Record Generation Diagram

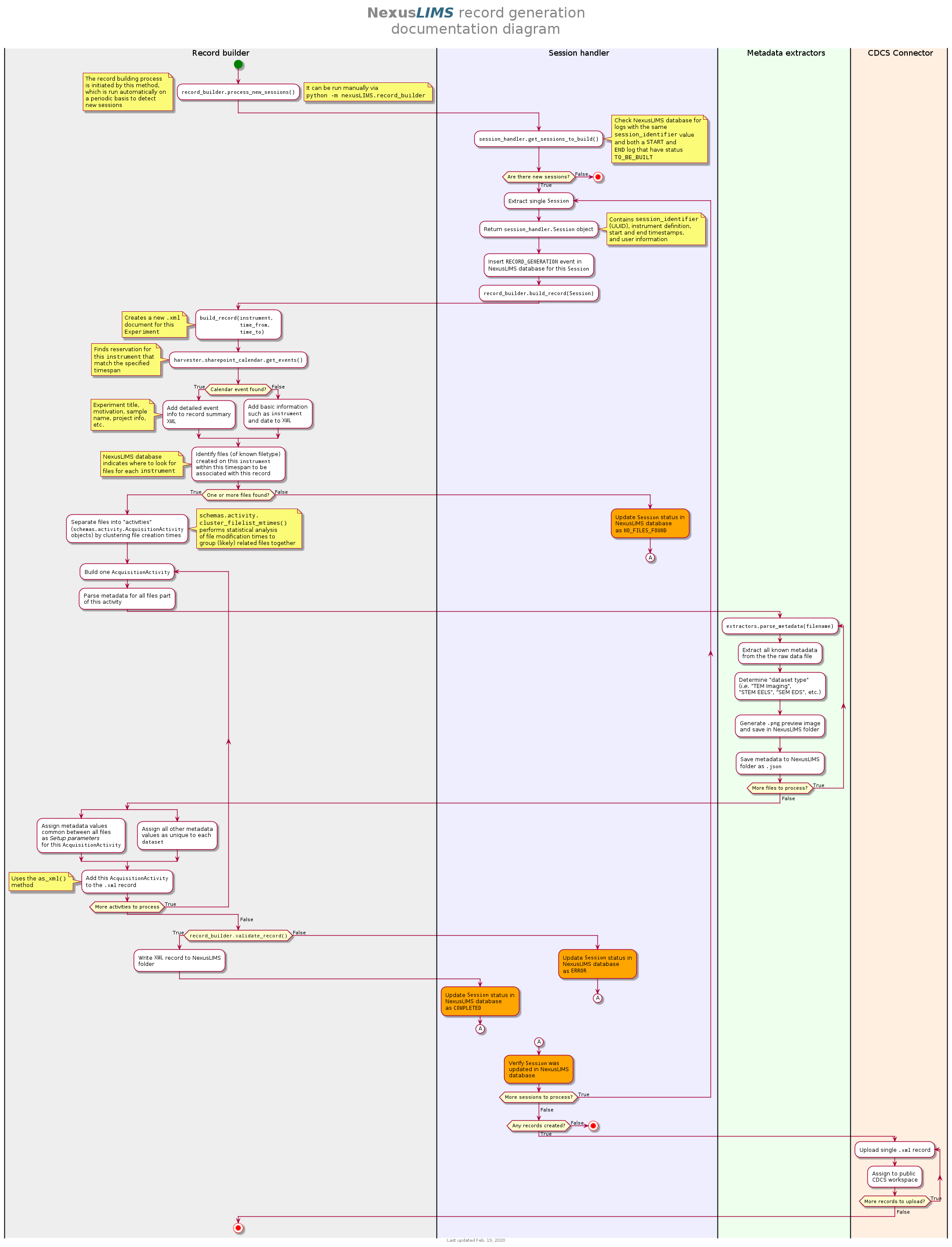

The following diagram illustrates the logic (described above) that is used to generate Experiment records and upload them to the NexusLIMS CDCS instance. To better inspect the diagram, click the image to open just the figure in your browser to be able to zoom and pan.

The diagram should be fairly self-explanatory, but in general: the green dot represents the start of the record builder code, and any red dots represent a possible ending point (depending on the conditions found during operation). The different columns represent the parts of the process that occur in different modules/sub-packages within the nexusLIMS package. In general, the diagram can be read by simply following the arrows. The only exception is for the orange boxes, which indicate a jump to the other orange box in the bottom left, representing when an individual session is updated in the database.
