Session Logging

To accurately know what files should be included in each Experiment’s record, it is important to have a timestamp for the beginning and end of when a user has collected data. To facilitate collecting this information, a small application has been written that is run from the microscope support (or control) PC and logs basic session information to the NexusLIMS database. This document explains how this application is used, its design, what information it collects, and how it is deployed to the individual microscopes.

How to use the Logger GUI

Using the Logger GUI is very simple. The program can be run as an executable file or through a command line. Directions for installing and configuring the Logger GUI can be found here. When the Logger GUI is started, there will be a short delay (about 5 seconds, depending on the instrument) and a display window will appear on the user’s screen, shown below.

The laptop name and date/time the Logger GUI was opened are shown in blue font, and there are four buttons at the bottom called Copy Data, End session, Add Session Note, and Show Debug Log. Once this window is displayed, the user should simply keep the window open while they work (minimizing the window is no problem). The Logger GUI does not perform any actions during this stage, and is simply waiting for the user to click the End session button. Before the End session button is clicked, the user has the option to add notes to the active session by clicking the Add Session Note button.

When the user has finished collecting data, they will click the End session button in the window. This will trigger the application to label the current experiment as finished in the database, and the Logger GUI will close by itself after a short delay.

What if something goes wrong?

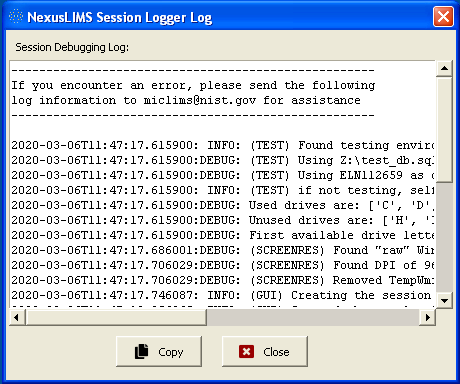

In the event that the Logger GUI encounteres an error, it will inform the user and a pop-up debugging log with more information will appear (this log can also be accessed by clicking the Show Debug Log button).

Interrupted sessions

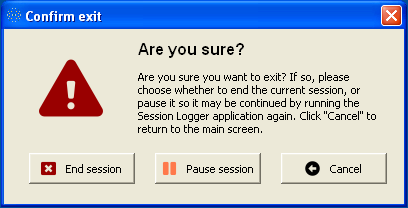

If the Logger GUI window is manually closed during a session, another window will appear that asks the user if they would like to cancel closing the window, pause the session, or end the session.

Clicking on Pause Session will immediatly close the Logger GUI without sending any further information to the database. The Pause Session button should only be clicked if the user plans to resume the session before another user would use the same instrument (i.e. they need to restart their computer). If an instrument session is paused but the End session button is never clicked, the next time the Logger GUI is run the user will be prompted to confirm whether they want to continue the existing session or start a new one.

Actions performed by the Logger GUI

The NexusLIMS Logger GUI performs a number of steps to record that an Experiment has occurred, and keeps the progress bar up to date while it is operating. These steps are detailed below.

1. Mounting the network share

The first action performed by the Logger GUI is to “ping” the central file server where data is saved and the NexusLIMS database is stored. This action initiates when the Logger Gui is opened. Based on the response, the logger stores the IP address of this server (to avoid problems with the DNS server). The Logger GUI then looks at the currently mounted drives on the microscope computer and picks a drive letter that is not in use. With this information, the program runs a Windows command to mount the drive. When this action is completed, the Logger GUI confirms that the database file can be accessed, and raises an error if not.

2. Getting the instrument name

Using the database file on the mounted drive, the Logger GUI queries the instruments table in the database using the “hostname” of the current computer. In this way, a computer name gets mapped to an instrument persistent identifier (PID) and this value is stored for later use. Directions for finding your computers “hostname” can be found here.

If the “hostname” of the user’s computer does not match any computer names specified in the database, the Logger GUI will be unable to map the computer name to an instrument persistent identifier (PID) and an error message will appear.

3. Checking instrument status

Before logging the start of a new Experiment, first the Logger GUI checks to ensure that the most recent entry logged for this instrument was an 'END' entry, meaning that the last session was marked as finished. For example, the code runs a query such as the following to get the most recent entry (that was not a record generation event):

SELECT event_type, session_identifier, id_session_log, timestamp
FROM session_log WHERE instrument = 'Instrument ABC'
AND NOT event_type = 'RECORD_GENERATION'
ORDER BY timestamp DESC LIMIT 1;

If this most recent entry is an 'END', the database is in its expected normal state, and the application continues on as normal. If it is instead a 'START' entry, then the application asks the user whether they want to continue the existing session found in the database, or start a new one (see the interrupted session section for more details). If the user chooses to continue the existing session, the Logger GUI notes the session identifier from the database for that session and jumps to step 6.

4. Inserting a START log

With the instrument PID known and a randomly generated identifier string, the Logger GUI runs a database insertion query on the session_log table to record that a session has been started. While not explicitly specified in the query, the current timestamp is also included in the insertion. As an example:

INSERT INTO session_log (instrument, event_type,
                         session_identifier, user)
VALUES ('Instrument ABC', 'START',
        'c9b774c9-4a59-4154-af05-0e2477e57cc4', 'local_user');

After this has finished, the Logger GUI runs another query to verify that the row was inserted into the database as expected, and raises an error if not.

5. Unmounting the network share

After the session start log has been added, the network share created in step 1 is unmounted to clean up while the Logger GUI waits for the next action. While the application is waiting, it simply sits idle until the “End session” button is pressed.

6. Ending the session

Once the user clicks the “End session” button, the Logger GUI again mounts the network share (as in step 1) so it can communicate with the NexusLIMS database. Using the same session identifier value as before, the application inserts a corresponding 'END' log into the database using a query very similar to that in step 4. After verifying that this record was inserted correctly, the application then updates the status of both the 'START' and 'END' logs for this session from 'WAITING_FOR_END' to 'TO_BE_BUILT'. This status indicates to the record builder, that it should go ahead to actually build and upload the record for this Experiment.

7. Cleaning up

After updating the logs in the previous step, the Logger GUI unmounts the network share (as before), and if everything went according to plan, waits three seconds and then shuts itself down. At this point, it is ready to be run again by the next user that arrives to begin a new session.

Information collected

As described above and in the database, the Logger GUI collects the bare minimum amount of information required to compile an Experiment’s record. The values collected from the microscope computer that are recorded to the database with each log are:

Variable	Description
session_identifier	A random UUID4 (36-character string) that is consistent among the record’s record’s "START", "END", and "RECORD_GENERATION" events.
instrument	The instrument PID associated with this microscope’s computer
timestamp	The current date and time (in local time)
event_type	The type of log for this session (either "START" for the beginning of an Experiment, or "END" for the end of one).
record_status	The status of the record associated with this session. Its value is "WAITING_FOR_END" at first, but is updated to "TO_BE_BUILT" after the session has ended.
user	The username of the currently logged in user (often this is just supervisor or admin)
